Oxygen


OGP series, Capacity 0.6-56 l/s, flow 2-200 Nm³/h, purity 90-95%



For more information:

+91 98240 35330
+91 99251 52791
info@globalairtechsystems.com archit.shah@globalairtechsystems.com
  • Product Information
  • Photos & Videos
  • Leaflets & Downloads

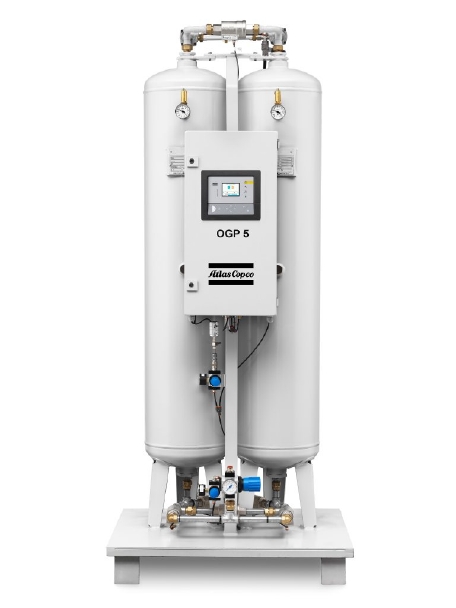

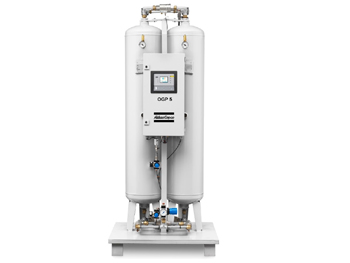

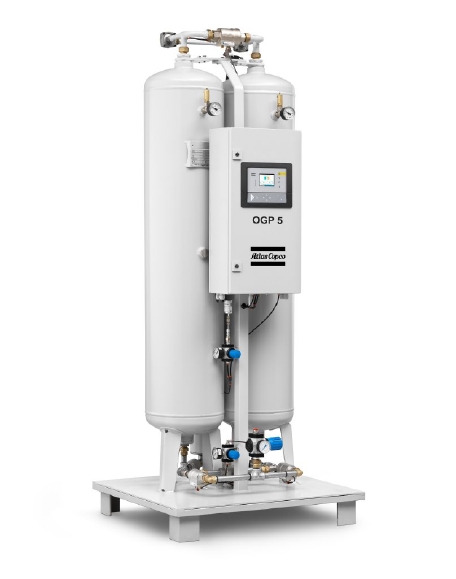

Atlas Copco’s OGP oxygen generation systems provide a cost-effective, reliable and secure supply of oxygen. The oxygen generator’s working principle is based on Pressure Swing Adsorption technology, with zeolite pellets that selectively isolate oxygen molecules from other molecules in compressed air. The OGP oxygen generator is perfect for applications such as ozone production, waste water treatment, health care, glass industry, etc.

Customer benefits


1. Cost savings – Our OGP systems are characterized by low operating expenses and the absence of additional costs such as order processing, refills and delivery charges. Maintenance costs are kept to a minimum too.

2. Convenience – OGP systems are continuously available, 24/7, to eliminate the risk of a production breakdown due to gas running out.

3. High purity – We guarantee the oxygen supply according to your needs, from 90 to 95% oxygen purity.

4. Plug-and-play – The OGP is delivered ready to use, you only need a supply of dry compressed air.
Technical data


Technical Specifications
Air consumption at max output
663 l/s
Flow
36 - 3606 l/min
Technical Specifications
Air consumption at max output
1404.8 cfm
Flow
9.51 - 952.6 gpm


Download the iLeaflet

Download the iLeaflet of this product range in the Atlas Copco Kiosk. This is an app for tablets (iOS and Android) and desktops (PC and Mac) that holds all our interactive product leaflets and tools. The Atlas Copco Kiosk and the iLeaflets are free and available in several languages. Read more on how to download the Atlas Copco Kiosk.
